EXT Suspension

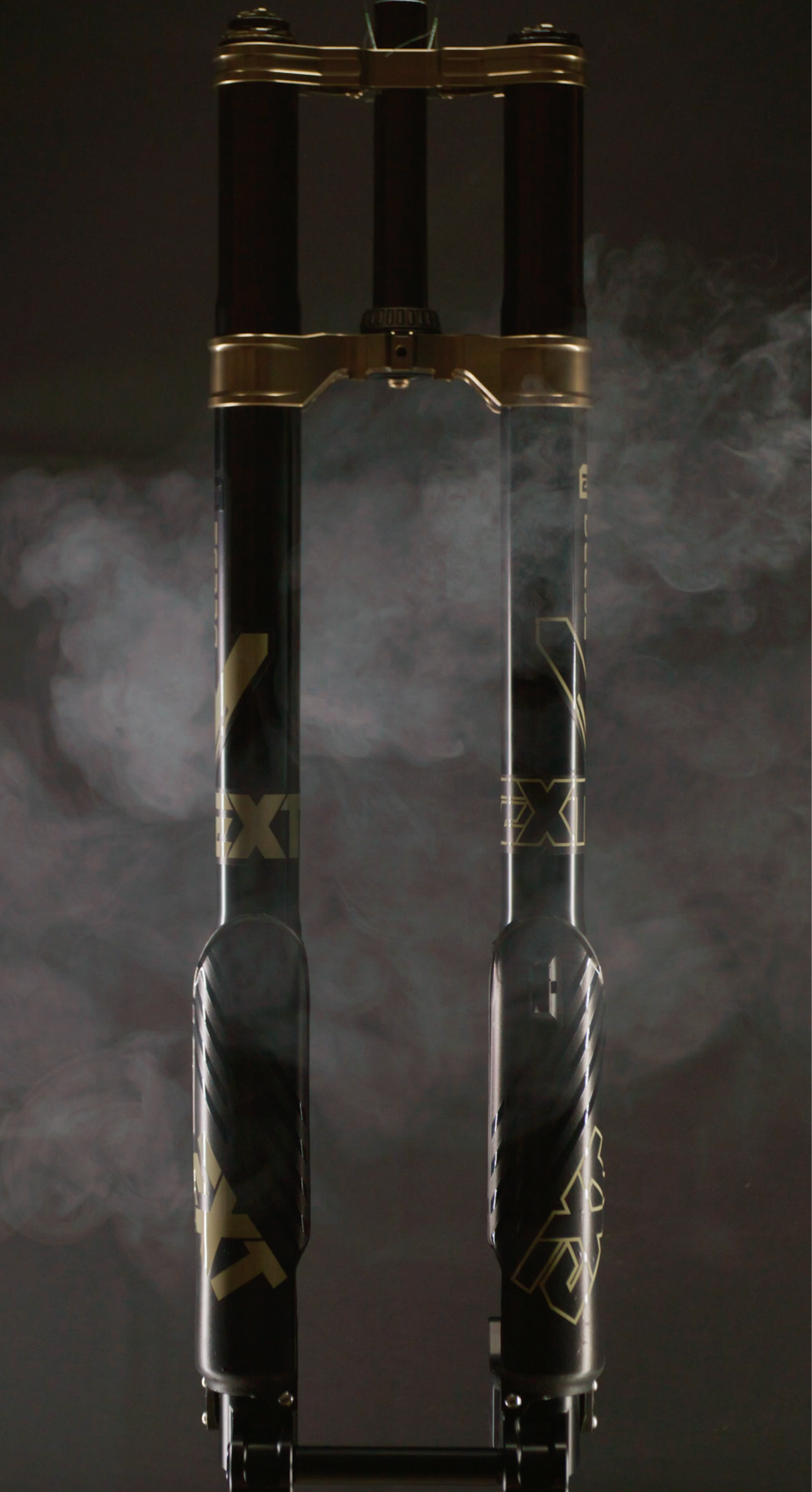

EXT Ferro EMX Fork
EXT Ferro EMX Fork
Regular price
$1,795.00 USD
Regular price
Sale price
$1,795.00 USD
Taxes included.
Quantity
Couldn't load pickup availability
The EXT Ferro EMX fork (USD 36) — an inverted dual-crown MX-style fork purpose-built for light electric MX bikes, with the HS3 air system and a fully adjustable 3-way cartridge.
- 36mm Ø hard-chromed steel stanchions (heat-treated 42CrMo4) with Superfinish surface treatment
- Dedicated triple clamp uppers machined from 7000-series aluminum
- HS3 air spring system: twin positive air chambers + 1 large self-balancing negative chamber for consistent support through the full travel range
- Chromed steel air spring shaft with Superfinish treatment
- High-flow 3-way adjustable cartridge with independent high/low-speed compression and rebound
- External air pressure release valves on both legs to normalize pressure with ambient conditions
- Twin hexagonal floating axle, Boost compatible, Ø20mm, for maximum torsional rigidity
- Radial guide system with aeronautical seals to minimize dynamic friction under side loading
- Large piston design with separate IFP/coil-energized compression valve — no cavitation, low hysteresis
- Self-hydraulic cartridge bleeding
- Continuously Guided Bushing (CGB) system with super-long static overlap for maximum stiffness
- 205mm travel, 44mm offset for increased stability
- Weight: ~4000g · Brake: post mount 200mm
Crown option: choose "Flat" crown for a 19" front wheel or "Drop" crown for a 21" front wheel.
Tuning: selected by rider weight (120–240 lbs) and feel — Plush or Firm.
| Manufacturer | Model | Compatible | Notes |
|---|---|---|---|
| Sur-Ron | LBX/S (all years) | Yes | Boost rotor spacer required |
| Talaria | MX3/4, XXX | Yes | Boost rotor spacer required; drop crown recommended for MX, flat for XXX |
| Talaria | MX5 | Yes | Requires aftermarket wheel and brake |
| E-Ride Pro | S/SS/2.0 | Yes | Boost rotor spacer required |
| E-Ride Pro | 3.0 | Yes | EXT brake adaptor available (fits SR model too but not covered by warranty) |
| Ventus | One/One+ | Yes | Boost rotor spacer required |
| 79 Bike | — | Yes | Boost rotor spacer required |
| Rawrr | Mantis / Mantis X | Yes | Boost rotor spacer required |
| Zero | XB | Yes | Boost rotor spacer required |
| Rerode | R1 / Ewatt 2.0 | Yes | Boost rotor spacer required |
| Altis Sigma | Sigma MX 100 | No | Not compatible |
Currently sold out at the manufacturer — pre-orders accepted, ETA early July. Authorized EXT-USA dealer.
